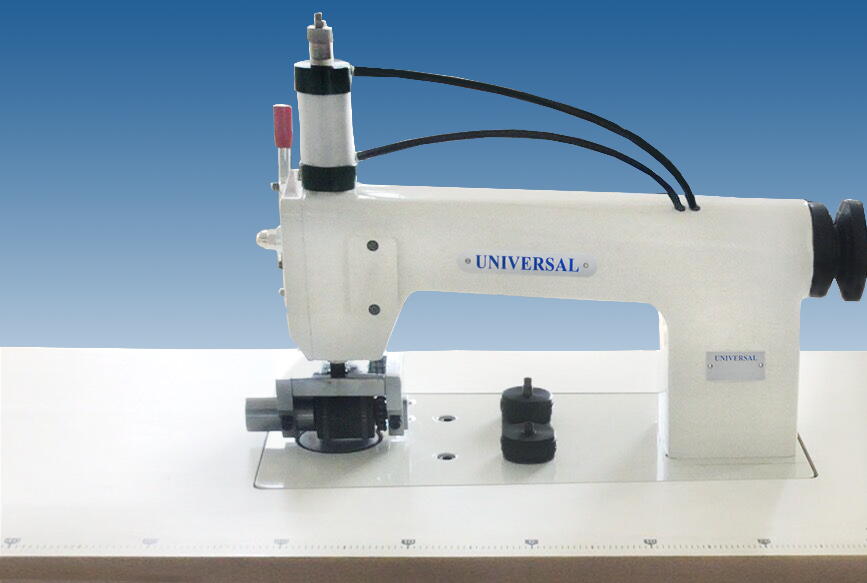

Universal GT60

Specifications

Voltage:  220V +/-5V 50/60Hz 6A 500W
Ultrasonic Frequency:  20kHz
Max. speed:  65.6 ft/min (20 m/min)
STD pattern size:  Width 0-70mm/Diameter 50-60mm
Dimensions of full setup:  1200mm x 600mm x 1200mm
Net weight:  198Lb (90Kg)
Universal GT60
Universal

Universal GT60
Universal

Price: $3,495.00

(You can always remove it later.)
Universal

The new GT60 machines seal, sew, and trim

?non-woven and synthetic fabrics in one step.How Ultrasonic worksUltrasonic bonding is made by channeling high-Frequency vibrations to the fabric. They create a rapid heat buildup. This heat causes the materialís synthetic fibers to melt and fuse, creating bonded seams that will not fray or unravel.

Universal

The GT60 offers a diverse production alternative for bonding synthetic fabrics. Materials best suited are 100 percent synthetic or blends with up to 40 percent natural fibers.


The GT60 can be used with such materials as polypropylene, polyester, nylon, acrylics, vinyls, PVC, and thermoplastic urethanes that are constructed as wovens, nonwovens, knits, films, and laminates.


Products include draperies, window shades, garments, blankets, awnings, athletic accessories, automotive seats and carpets, banners, flags, medical apparel and disposables, safety garments, ballistics coverings, aviation insulation panels, netting, and ribbons.
